Multitasking Grinding Machine

Oct. 22, 2020

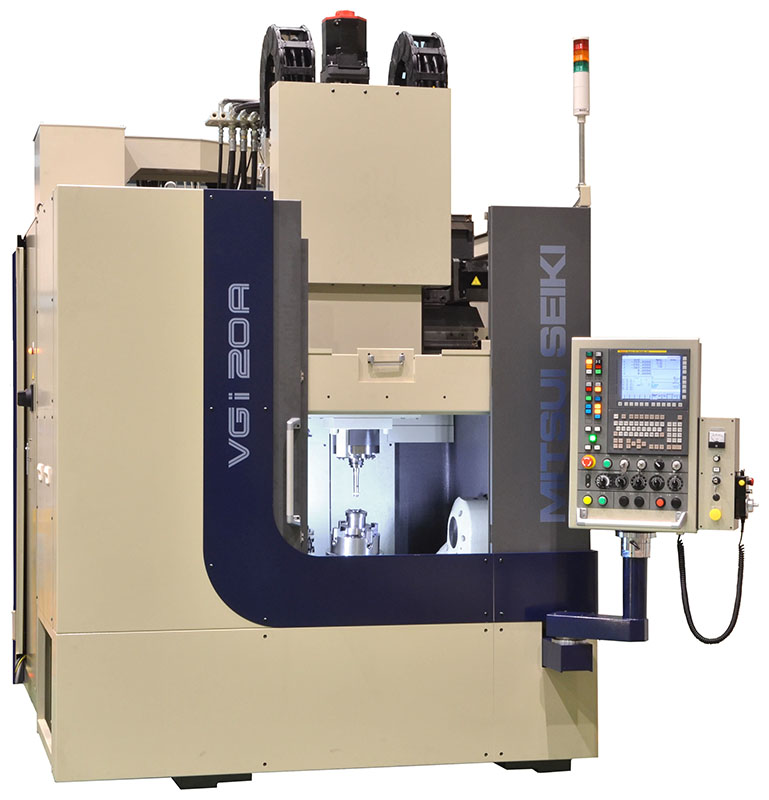

The VGi20A, with five axes of motion and storage for 40 tools, grinds and machines ball screws in one chucking, slashing processing time by two thirds. It also machines the nut circumference, end surface, key grooves, and return tube holes in one set-up.

MITSUI SEIKI’s VGi20A ball-screw nut grinding multitasking machine performs grinding and machining in one chucking, slashing nut processing time by two thirds. With five axes of motion and storage for 40 tools, the machine can grind thread grooves and also machine the nut circumference, end surface, key grooves, and return tube holes in a single setup. In addition to producing large savings in manufacturing time, elimination of setup changeovers also assures exact phase alignment of thread grooves and return tube holes. A standard touch probe enables automatic pre-processing phase alignment of the thread groove and wheel. The machine produces threads via simultaneous interpolation of the C, Y, and Z-axes.

Users can generate optimal grinding programs automatically by entering data on the grinding screen of the machine’s FANUC 31i-B5 control. Canned measurement cycles are available for setup. A rotating dresser shapes wheels for grinding thread profiles, and a single-point dresser prepares wheels for grinding nut circumferences and end surfaces. An optional three-dimensionally-designed automatic coolant nozzle changer provides coolant to an optimal point based on the profile of the workpiece, grinding wheel, and quill.

X, Y, and Z-axis strokes of the VGi20A are 550, 600, and 500 mm respectively. A-axis trunnion movement ranges from +15 to -105-deg., and C-axis rotation is 360-deg. Maximum workpiece diameter is 250 x 300 mm, and weighs 120 kg. The machine spindle is capable of speeds from 15 to 30,000 rpm and is fitted with an HSK-A63 taper. Tools up to 250-mm in length and 90-mm in diameter can be accommodated. Machine footprint is approximately 3,200x3,000 mm. Learn more www.mitsuiseiki.com
