Hypermill 5 Xcorner Rest Machining 1540

3D and 5-Axis Enhancements in CAD/CAM Update

April 2, 2020
The new version of hyperMILL offers options for complex part machining, with better ease-of-use and overall programming performance, plus new automation and additive manufacturing strategies.

OPEN MIND Technologies AG introduced hyperMILL® 2020.1, a new version of its comprehensive CAD/CAM software suite. In addition to 3D and 5-Axis Machining enhancements for complex part manufacture, the new version increases ease-of-use and overall programming performance, and includes key new automation and additive manufacturing strategies.

"The new version of hyperMILL® encompasses a wide range of user friendly enhancements and important new machining strategies, further advancing the capabilities for accurate, efficient 3D and 5-Axis machining," said Alan Levine, managing director of OPEN MIND Technologies USA Inc. "We are also very pleased to reinforce our commitment to additive manufacturing and automation in hyperMILL®  2020.1."

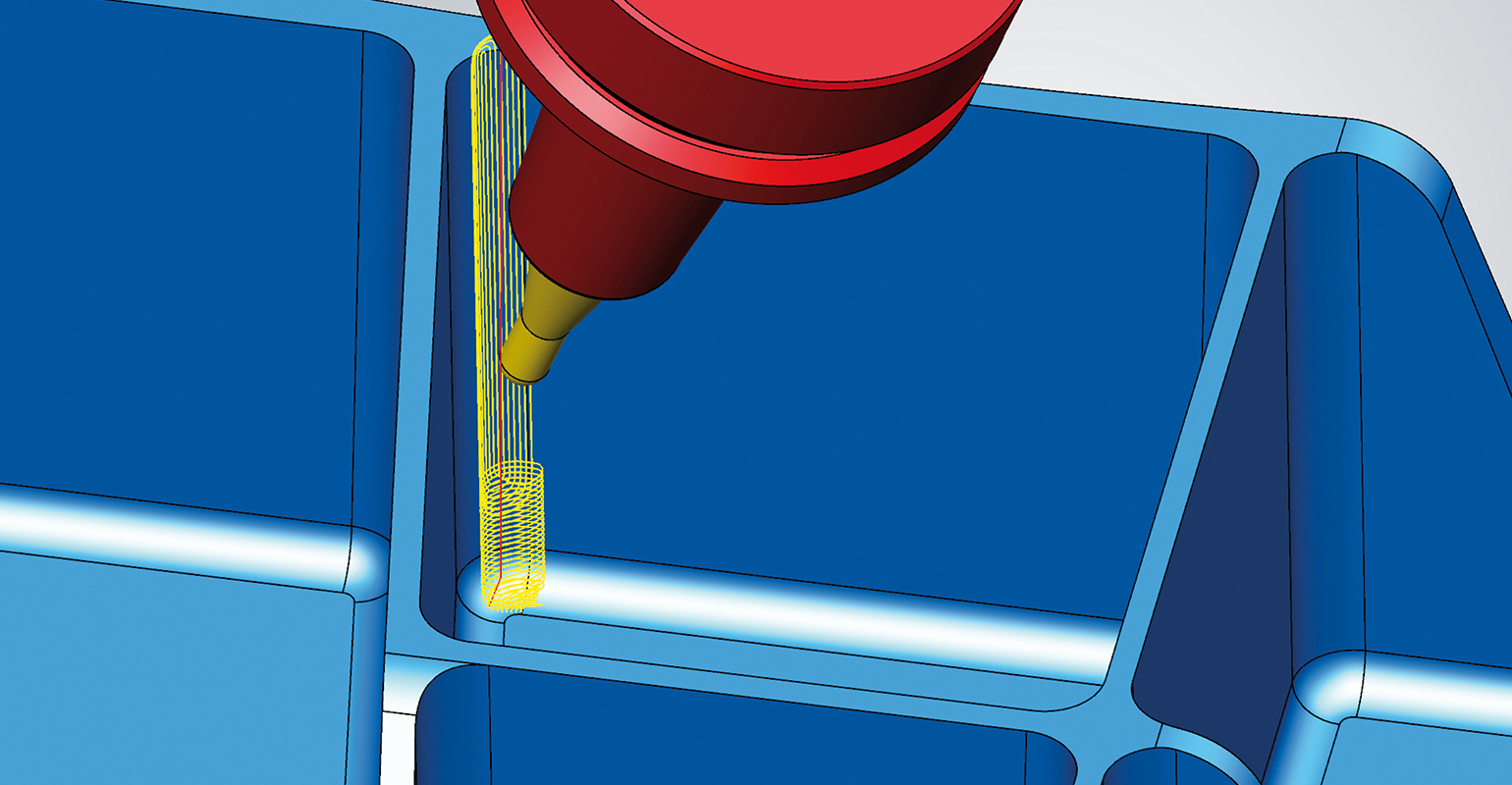

For highly productive rest material machining, hyperMILL®  2020.1 offers new Corner Rest Machining strategies for 3D and five-axis techniques that provide significant benefits in complex machining applications, including for molds and dies. With a simple instruction, corners can be machined largely by vertical stroking motions. Then, traditional Z-level steps can be used to blend with the vertical section and the lower floor area. The top section has an automatic surface extension to enable the production of sharp edges.

hyperMILL®  2020.1 features a new 5-Axis Blade Tangent Milling strategy that increases efficiency and improves surface quality when milling with conical barrel cutters that have a large primary angle. As a result, higher feed rates are possible, while avoiding center-cutting. Large stepovers provide an excellent surface finish.

Programming is simplified within the Mill-Turn module by a new Automatic Contour Feature Splitting capability, enabling hyperMILL® to determine the area to be machined automatically, based on the turning contour. The grooving job will automatically recognize if a contour is a groove, making it faster and easier to program certain areas.

A new hyperMILL® Automation Center allows users to automate the job list creation processes in hyperCAD® -S, serving as both a development and runtime environment. New features also include the ability to select and position the clamping device, as well as define a uniform process for all programmers.

The Additive Manufacturing process in hyperMILL® CAM software supports 3D printing/additive processes and provides efficient hybrid processing with simultaneous additive manufacturing and subtractive machining on one machine tool. hyperMILL® Additive Manufacturing technology offers flexible strategies for additive material applications, including filling strategies for both planes and free-form shapes, and in 2D and 3D sections.

Applications also include hybrid machining to fix damaged parts and additive machining of an existing component.

Improving probing, new hyperMILL® CAM software includes Slot-Rib Probing to measure slots and ribs using familiar technology parameters. For high stock removal rates, 3D machining strategies in hyperMILL®  2020.1 now include 3D Optimized Roughing in high-performance hyperMILL® MAXX Machining mode.

The roughing process also offers improved area sorting, resulting in fewer retractions and improved collision checking. In addition, two new user-friendly functions are now available in 3D Profile Finishing including automatic face extension and free tool geometry. Automatic face extension can be used during programming to extend the circumference of selected milling surfaces, eliminating the need to modify the milling faces in the CAD system beforehand. Free tool geometry enables the use of any tool type for highly detailed programming and collision control.

Learn more at www.openmind-tech.com
