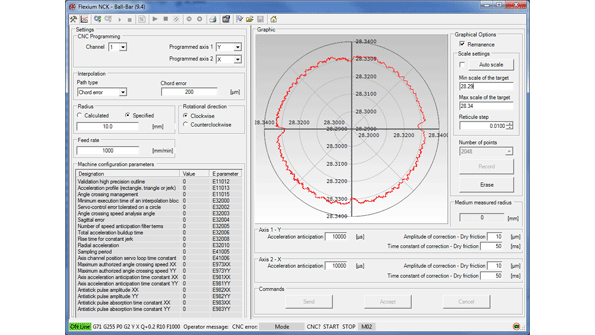

Flexium software includes tools for machine setup optimization and diagnostics such as ballbar testing of interpolated axes

“Almost Unlimited” Flexibility for Configuration

Oct. 4, 2012
Scalable control system with integrated safety architecture Application-specific machining functions Larger, more complex machine control applications Graphical simulation verifies part programs easily, quickly Single-, dual-axis digital servo drives

The NUM Group describes itself as “a CNC high-end application company,” and at IMTS it added to that descriptor by launching a new CNC platform it said provides machine tool manufacturers with “an exceptionally flexible and scalable solution for safe control of machine tools.”

Flexium+ is a modular, safety-equipped platform that OEMs may use to standardize on a single cost- and performance-optimized CNC architecture for multiple machine types, from small machines with a few axes to large multi-cell manufacturing equipment with over 200 axes and spindles. The open architecture of the CNC platform can lower development and support costs, and accelerate time to market, according to NUM.

Flexium+ is an extension of NUM's Flexium CNC architecture, but to provide greater versatility, dynamic performance, and accuracy, the platform’s hardware includes new digital servodrive modules with integrated safety; a safety PLC module; safe input and output modules; and a multi-processor operator panel with touch-sensitive screen. New support software includes a precision operating system and soft automation PLC, with a fully customizable human-machine interface (HMI) that recognizes touch gestures, an extensive suite of optional machining functions, and a powerful 3D simulator for part program verification and visualization of machining processes.

A choice of three CNC “kernels” — Flexium+ 6, Flexium+ 8 and Flexium+ 68 — will allow machine designers to deploy technically and economically optimized solutions for different machine tool applications. Flexium+ 6 and Flexium+ 8 will control up to four interpolated axes and a spindle; Flexium+ 8 is dedicated to machines that need a higher degree of flexibility. Flexium+ 68 supports larger and more complex machine control applications and provides up to eight CNC channels, each accommodating up to nine interpolated axes and as many as 32 spindles. In total, a single Flexium+ 68 CNC kernel can accommodate 32 connected devices, any of which can be interpolated axes or spindles. This universal control approach simplifies spindle/C-axis commutation and provides an excellent foundation for multi-spindle applications such as transfer machines.

"Being able to use one CNC architecture across a complete range of machines gives a very large payback, especially for the many small to medium sized machine tool builders that support a broad range of applications using limited design resources,” said NUM CEO Peter von Rueti.

Enhanced part programs

An enhanced part program structure will let machine designers take advantage of the new CNC hardware's versatility. Each channel runs its own part program asynchronously and operates autonomously, as if it had a dedicated CNC kernel, or it can be synchronized to other channels. Control of one or more axes or spindles can be passed from one channel to another, "on-the-fly," to maximize use of available hardware resources.

In each channel, four spindles can be operated in a master/auxiliary arrangement, with real-time control of their speed, direction and indexing. This simplifies implementation of complex machining operations. The master handles advanced CNC functions such as maintaining CSS (constant surface speed) while the workpiece changes diameter during processing, or continuously tracking angular position during thread cutting, with the three auxiliary spindles handling associated higher speed machining.

Multiple Flexium+ 68 CNC kernels can be interconnected via real-time Ethernet, which enables the realization of control systems with more than 200 interpolating axes. The ability to drive multiple CNC kernels and control this number of axes with a single automation PLC is a unique advantage of NUM’s CNC architecture.

Implementing machine safety

To help OEMs implement machine safety schemes, Flexium+ introduces a comprehensive system-wide safety architecture, known as NUMSafe. A new safety PLC module oversees all critical system operations. In conjunction with new NUMSafe I/O modules and servo drives – which incorporate safe motion monitoring circuitry – the safety PLC enables machine designers to implement high integrity safety functions with very few additional components.

NUMSafe is scalable, requires minimal extra wiring and uses a FailSafe over EtherCAT (FSoE) protocol to ensure integrity of all safety-related data. The architecture complies with the EN ISO 13849-1 machinery safety standard up to PLe, and with the EN 61800-5-2 functional safety standard for variable speed drives, up to SIL 3.

Available in single- and dual-axis versions, the new digital servo drives – NUMDrive X – offer a choice of two performance levels, with outputs from a few amps to 200 Arms. Their high degree of functional integration makes them one of the smallest drives of their type on the market. To further simplify design-in, the drives’ safe motion monitoring board is available in a basic version with Safe Torque Off functionality, and in an extended version which adds Safe Operating Stop, Safe Stop 1, Safe Stop 2, Safely-Limited Speed and Safely-Limited Position functions.

NUM indicated that its NUMDrive X servo drives are “significantly faster” than the earlier-generation NUMDrive C products. Advanced DSP control increases CNC-drive servo bus speed by 100 percent. Together with improvements to the drives’ bandwidth (up to 25 percent greater) and enhanced acceleration algorithms, this means machine designers need not sacrifice resolution during extended axis travel, or trade traverse rate against positioning accuracy. A numerical processor in the CNC kernel improves CNC resolution and accuracy; the software has been enhanced to high-precision format, allowing for finer interpolation and speed control.

Speeding part programs

To speed development of part programs, Flexium+ provides a unified suite of software tools with a consistent look and feel. All CNC, servodrive, I/O, automation PLC and safety PLC functions are set up and programmed using a single tool; the automation PLC offers a choice of IEC 61131-3 compliant graphical and textual programming languages, while the safety PLC is programmed using simple function blocks and Boolean operators.

Also, Flexium+ offers a fully customizable HMI, so OEMs can improve the ergonomics of their machines. Dual touch gestures like ‘wipe’ ‘expand’ and ‘rotate’ can be incorporated to capitalize on NUM’s new touch-sensitive operator panel, and virtual keys can replace physical keys to simplify machine operation and reduce build costs.

Manually written or CAM-generated part programs can be verified and optimized easily and quickly using NUM’s powerful Flexium 3D graphical simulation software on an offline PC.

Alternatively, the software runs on the new operator panel, taking full advantage of its multi-core processor PC and 19-inch screen, and interacting with the machine’s CNC unit, to simulate part programs either before they are run, or simultaneously with part processing. Users can visualize the path of the tool centre point, simulate material removal and check for collisions. As standard, the software can simulate a wide variety of machining functions including grooving, thread cutting and tapping on 3- to 5-axis turning machines, milling and drilling on 3-axis machines, and contour cutting.

A diverse range of application support software covers machining functions like grinding, turning, milling and cutting, as well as gear hobbing, shaping and finishing. The latest additions include new functions for water-jet and plasma cutting machines, using innovative ‘tilted nozzle management’ algorithms to prevent under- or over-cut edges by automatically compensating for the conical shape of the beam.

The Flexium+ CNC platform is backed by NUM’s portfolio of motors. NUM is also introducing two new ranges of brushless axis motors designed specifically for use with the new NUMDrive X servo drives. These drives incorporate a digital encoder interface that dispenses with the need for a separate cable by carrying encoder power and data on a two-wire link embedded into the motor cable. The new SHX and SPX brushless axis motors have a single connector and cable, simplifying installation and reducing wiring costs significantly.
