Machining tough materials like titanium is a challenge on its own: Machining hard alloys with the extra pressure of having to improve production efficiencies means maximizing metal-removal rates in the face of low cutting speeds and significant cutting forces. Machine tool builders have responded with specialty milling and turning centers that feature improved stiffness and damping on spindles and sizable machine structures, all to minimize undesirable vibrations that deteriorate part quality and tool life. Although these advances have added to greater productivity, very often the spindle connection itself has been the weakest point of the solution.
In most cases, the tool-spindle connection determines how much material can be removed on a given operation. This is because this interface must withstand high loads and yet maintain its rigidity, until tool deflection is too high or the onset of chatter is reached. With ongoing advances in cutting tools and machining centers, a spindle connection that makes the best utilization of available power possible is an important consideration to investigate early in production planning.
Several types of spindle connection have been developed or optimized over the last few decades. Due to a good cost/benefit position, the 7/24 ISO taper grew into one of the most popular systems in the market. It has been a success in many applications, but accuracy and high-speed limitations prevent it from growing further.
The advent of face contact represented a major improvement over the standard 7/24 taper. The combination of face contact with the 7/24 solid taper provides higher accuracy in the Z-axis direction, but also presents some disadvantages, namely loss of stiffness at higher speeds or high side loads. Most tools in the market are solid and the spindles have relatively low clamping force. Connection stiffness is limited, as radial interference needs to be kept to a minimum. The required tolerances to achieve consistent face contact are thus very tight, leading to high manufacturing costs.
In 1985, Kennametal and Krupp WIDIA initiated a joint effort to develop a universal quick-change system, now known as KMTM and recently standardized as ISO 26622. In the early 1990s the HSK system started to be used by European machining operations and later became DIN 69893, then ISO 12164.

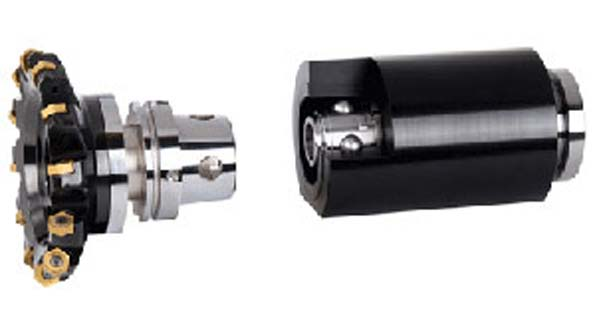

KMTM quick-change tooling consists of two basic components: the clamping unit and the cutting head. The clamping unit mounts to the machine tool (a turret or tool block for stationary applications and a rotating spindle to accommodate rotating applications) and is the receptacle for the interchangeable cutting unit/toolholder. When a tool change is necessary, an operator simply releases the locking system, replaces the cutting unit, and locks it into position. Machine downtime is a matter of seconds.
KM4XTM from Kennametal represents the next generation of KM. Some systems may be able to transmit a considerable amount of torque, but cutting forces also generate bending moments that will exceed the interface’s limits prior to reaching torque limits. By combining high clamping force and optimized interference levels, KM4X provides a robust connection, extremely high stiffness, and bending load capacity for greatly improved performance in machining high-strength alloys and other materials, enabling extremely high metal removal rates and more completed parts per day.
3X improved bending moment resistance — The spindle connection must provide torque and bending load capacity compatible with machine-tool specifications and the requirements for higher productivity. It becomes obvious in end-milling applications, where projection lengths are typically greater, the limiting factor is the spindle interface’s bending capacity. As an example, an indexable helical cutter with 250 mm (9.84 in.) projection from spindle face, 80 mm (3.15 in.) in diameter generates 4620 Nm (3407.5 ft. lbs.) of bending moment and less than 900 Nm (663.8 ft. lbs.) of torque when removing 360 cm3/min of Ti6Al4V at RDOC of 12.7 mm and an ADOC of 63.5 mm.
The most critical parameters of a taper-face spindle connection are the clamping force and radial interference. Maximizing clamping force and selecting appropriate values of interference can improve connection rigidity even more.
By using three-surface contact to improve stability and optimize clamping force distribution and interference fit, KM4XTM engineering results in three times the bending moment resistant capacity compared to other tool systems.
- Shops can leverage KM4X-equipped high-performance machine tools to increase speeds and feeds in difficult machining applications, thus gaining the full productivity potential from the machine tool.
- Often, a smaller KM4X connection such as a KM4X100 will provide the same or better cutting performance of a larger connection.
- KM4X systems can be applied on multi-tasking, turning, machining centers and transfer machines in manual, semiautomatic, or fully automatic mode.
By design, KM4X can perform in a wide range of operations, from low-speed/high torque to high-speed/low torque, allowing manufacturers to get the most out of their production equipment.
Mark Huston is the vice president for Global Engineered Solutions; with Kennametal Inc. Doug Ewald is the director for Global Product Management, Tooling Systems; and Ruy de Frota de Souza is the manager for Global Tooling Systems, Product Engineering — all with Kennametal Inc.
