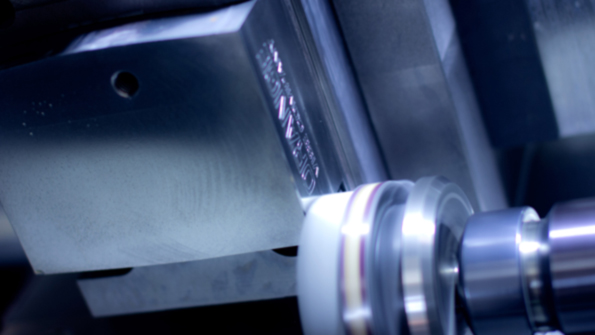

To remove burrs created during fine engraving, Orange Vise adopted the NamPower brush in favor of a more time-consuming grinding process.

Automating Deburring/Finishing Speeds Throughput

Nov. 20, 2013
Fewer production steps Flexible abrasive nylon filaments Work like flexible files Same brush for aluminum, iron, steel Tool longevity

By automating deburring operations instead of handling it as part of a secondary process offline, CNC machining operations are reducing labor costs and speeding high-volume parts finishing. Now, with a new advance in abrasive technology, machine tool operators are able to add surface finishing simultaneously, in the same operation to speed things even further.

For Eric Sun, founder of Orange Vise Company, the combination of automated deburring and surfacing finishing introduced the possibility of eliminating several time consuming and laborious processes from the production process. Orange Vise manufactures CNC machine vises and quick-change fixturing components in Orange County, California, using a Mori Seiki NHX4000 high-speed horizontal machining center.

As with most CNC machining centers, however, the process of deburring typically involves taking the part offline and dressing it by hand using a variety of abrasive tools. Sun wanted to automate the process, but he also wanted to eliminate a messy grinding process that the company used to achieve a specific surface finish.

According to Sun, the company’s CNC machine vises are constructed of different materials and surface treatments. The body of the vise is made of cast iron with selectively hardened surfaces. The vise also comes with a variety of different sized with different heat treatments.

The hardened surfaces, which can measure as high as 50-60 on the Rockwell C Scale, required grinding because milling cutters would wear out too quickly. Out of necessity, Orange Vise would also grind the non-critical, unhardened surfaces to create a uniform appearance over the entire workpiece.

“This process involved removing, cleaning, and then repositioning parts several times to be able to grind each face. It was time intensive, particularly for the work that was purely cosmetic,” Sun explained.

A Single Operation

It was then that Sun discovered a new abrasive tool from Brush Research Manufacturing, the abrasive technology that invented the Flex-Hone Tool in use worldwide. BRM’s new line of NamPower abrasive disc brushes are designed to allow CNC operators to automate deburring process and deliver an ideal surface finish, in a single operation.

Orange Vise Co., which manufactures vises for CNC machines, the combination of automated deburring and surface finishing eliminated several time-consuming, labor-intensive processes.

“We started using the NamPower brushes for deburring, but quickly discovered they provided a really nice surface finish,” Sun said.

Composed of flexible abrasive nylon filaments bonded to a fiber reinforced thermoplastic base, the NamPower abrasive disc brushes contain a unique combination of both ceramic and silicon carbide abrasive. These abrasive filaments work like flexible files, conforming to part contours, wiping and filing across part edges and surfaces to deliver maximum burr removal rates along with an ideal surface finish.

Other common uses are edge blending, part cleaning, and rust removal.

Although there are abrasive nylon filament products that use silicon-carbide or ceramic, it is the combination of both in one tool that distinguish NamPower brushies. The ceramic abrasive is responsible for material removal, but tends to cut a bit coarse. The silicon carbide acts as a buffer to the cutting action. The result is deburring and finishing in a single operation.

Material Selection

The NamPower brushes work well with non-ferrous, cast iron, mild steel and ductile iron, stainless and alloy steels, titanium and high nickel alloys.

Sun had a choice of brushes from BRM, between the product’s two available fill configurations: the Dot Style, for general purpose deburring and surface finishing; and the Turbine Style, which has a higher density fill for more aggressively deburring.

To achieve the smoothest finish possible and approximate the ground surfaces of the CNC vise, Sun said he selected the Dot style brush and intentionally reduced the spindle speed. He was immediately pleased with the results.

“The surface finish was good enough that we were actually blending it with our ground finishes,” he reported. “With large surfaces that required multiple passes, there were no visible blends. The whole thing looked like it was done in one pass.

“Needless to say, the brushes sped up the process quite a bit,” Sun added.

Now, Orange Vise finds that the Dot Style NamPower brush is flexible enough to conform to features of varying heights, and can be used on other parts as well.

“We weren’t expecting to use brushes so much, but we’re finding more and more uses for them,” Sun said. “We use the same brushes for aluminum, steel, cast iron and several other materials without having to swap them out very often.”

One application, and one of its primary purposes, is edge blending. According to Sun, Orange Vise uses a variety of deburring tools, including a 45-degree chamfer. Although the tool doesn’t typically leave a burr, but it can do so when it begins to wear – even slightly. Based on this possibility, Orange Vise required an employee to inspect each part and handle any burrs by hand.

Now the company automatically deburrs chamfered holes and edges using the NamPower Brush.

Tool Longevity

In addition to deburring, Eric said Orange Vise does some engraving on the vice jaws, using a ball end mill. Although the engraving on the underside of the vice doesn’t require deburring, Orange Vise wanted finer engraving on the top. For this, they used a 45-degree V-bit that created burrs.

To remove the burrs, the options were either to grind them out or to use the NamPower brush. Sun opted for the latter.

“Grinding would be so much more work. With the brushes it really doesn’t take any extra effort at all. It adds maybe 30 seconds to the process,” he said.

The NamPower brushes were developed with tool longevity in mind. Ceramic is an extremely durable material and there are reports of the brush lasting over 100,000 parts.

The brushes are essentially “self-sharpening” over their service life, too. Because of its linear construction, sharp new grains constantly come in contact with the work surface and wear off exposing fresh cutting particles. This provides consistent deburring action throughout the length of bristles.

“We use them just about every day and there’s definitely no difference in performance from Day One until now,” says Sun.

To eliminate filament smearing, improve surface finish, and promote longer tool life, the disc brushes also are designed with a new tool holder that allows coolant to flow through its center for better lubricant dispersion. This permits the brush to run at greater cut depths while reducing heat generation
