Mold Maker Uses VISI Software to Generate Hybrid Aluminum Tooling

Dec. 21, 2007
J&M Mold of Fairport Harbor, Ohio, is a precision tool and die maker for the plastic, aluminum, and zinc injection industries. Owner David Martin is a mechanical engineer who has been working in the die casting industry since he was 13 ...

J&M Mold of Fairport Harbor, Ohio, is a precision tool and die maker for the plastic, aluminum, and zinc injection industries.

Owner David Martin is a mechanical engineer who has been working in the die casting industry since he was 13 years old. He has been using the full suite of VISI Series software from Vero International ( since he opened his operation seven years ago.

Martin said he addresses industry challenges by staying in tune with the latest technologies and new strategies for faster, more efficient mold assembly.

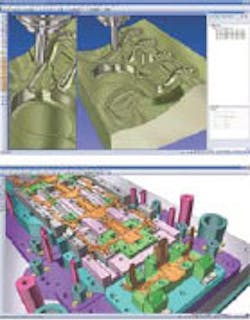

“For example, we use VISI Flow software to design accurate molds faster, and VISI Machining, for cutting steel, and high feed milling. It’s very important that we get the part right the first time. This keeps our customers happy and we enjoy repeat business because of it,” Martin said.

As a student of lean thinking and lean manufacturing, Martin integrates the theories into his use of VISI products.

“It seems that VISI software was designed around lean manufacturing with the constant flow of menu picks – all operations in one software package. VISI is a CAD system that was designed by people with tool makers in mind,” he said.

Designing molds from aluminum rather than steel is becoming popular, but Martin has worked with aluminum since he opened his shop.

“We use VISI to develop aluminum prototypes and short run production tools. We are able to generate increasingly more parts from them,” Martin noted. As a result, aluminum is beginning to replace P20 steel which has been traditionally used to produce molds that are 20-32 Rockwell. Aluminum molds will last for a long time as long as abrasive or corrosive plastics are not injected into them.

“Why build a P20 tool when you can build an aluminum tool that will last through thousands and thousands of shots or short run production?” Martin asks. He cautions, however, that part materials and molding process must be appropriate for aluminum molds.

“You cannot inject any part into an aluminum mold because of details such as thin-walled shut off designs. Such parts do not work as well in aluminum because the aluminum isn’t as structurally strong as steel,” Martin said.

However, Martin has found a strategy around that caveat: “We subinsert steel shut offs or slides inside the aluminum mold design. We call this hybrid aluminum tooling, and VISI is strategic for designing such tools. Critical or small parts of the mold design can be made of steel while the rest of the design is aluminum.”

Aluminum is less expensive to machine and designing tools in aluminum is less costly for J&M Mold customers.

Using VISI software, Martin machined a steel plate over two days’ time. Designing and machining the, the same plate in aluminum took him just six hours.

He said many customers are pleasantly surprised when he tells them he can help them save money by using aluminum versus steel for their mold designs.

In addition, delivery of aluminum tools is at least 50 percent faster depending on the part design compared with steel molds. “We can generate at least one aluminum tool per week. There is no room for error so we use VISI analysis upfront to assure that the design is accurate the first time,” Martin notes.

VISI software is not parametrically driven, so you don’t have to work with tree-driven icons. Instead, the software offers specific tools for specific tasks.

“Most of my customers who use SolidWorks tell me they have a lot of trouble with tasks such as blending and meshing components. Using VISI, however, there’s no problem or angst over those efforts,” Martin said.

He likes the VISI machining package, too, particularly the rest milling and pencil milling. Martin explains that he wouldn’t rough out a complex block without those tools.

“The important aspects to consider for machining include ease of use, time to program, run time on the CNC, quality of finish, and price. VISI beats the competition on all those issues,” Al Foote said. Foote is a principal at Compass Technologies, an Ohio-based distributor of VISI Series software.

Martin said that using VISI for mold analysis is indispensable.

“Customers understand the analyses add value to each and every project. They have come to realize and accept the fact that the cost incurred as a result of running the analysis actually helps them save time and money that can be incurred when molds that aren’t analyzed must be retooled. VISI Flow is as useful to me as the machine used to cut the tool. “

VISI Project

Recently, a medical device customer approached J&M Mold because a mold that was designed and built in China was producing flawed parts in the field.

Over a two-day period, Martin used VISI Flow software to rework the mold gating system.

“Working with the customer and VISI Flow, we found the best gating situation for the part. I moved the gating to where I thought it would be best and used VISI Flow to confirm it. In addition, using VISI Mold we increased the mechanical integrity of the part design and strengthened the areas that needed to be stronger compared with the original Chinese designed mold. We designed and built the tool, shipped it, and as a result the mold generated high quality parts,” Martin said.

VISI Learning Curve

Martin taught himself how to use VISI software. He began using VISI 3D machining to produce prototype parts out of plastic. Within one week, he was generating parts. After three months, he was completely competent – designing and building complete tools. Today, he and his staff can build two complex tools per month.
